Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: W-TEL
  • Model Number: W-TEL22T
  • optic fiber cross connection ODF cabinet: Industrial degree
  • ODF cabinet: outdoor type
  • W-TEL fiber connection cabinet: telecom type
  • type: IP 65 certified
  • Application: Telecommunication
  • Certification: CE RoHS FCC
  • Color: Gray
  • Material: SMC stainless steel

Packaging & Delivery

Packaging Details Standard package
Upon customer's request
24 month warranty
Delivery Time within 10 days after contract
Shanghai Warner Telecom offer you fiber cable cross connection outdoor fiber cabinet

optic fiber distribution cross connection ODF cabinet
telecom cabinet

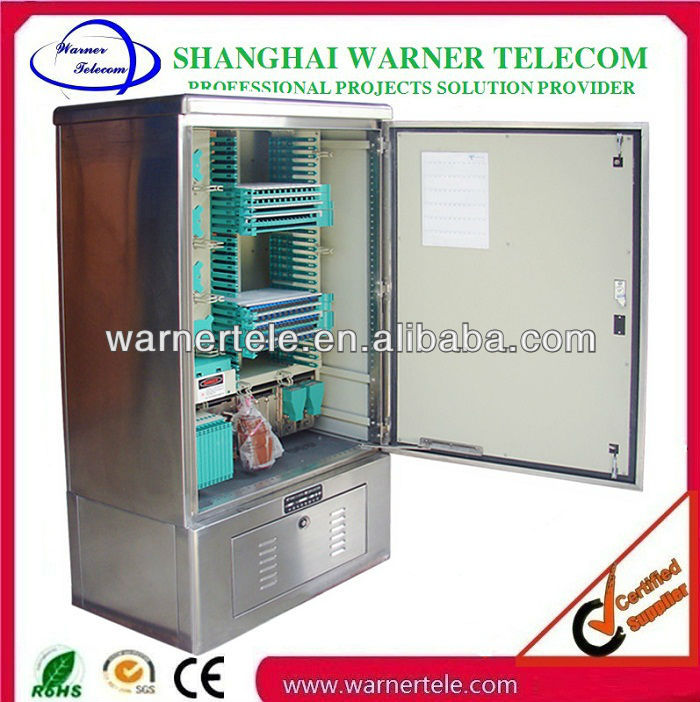

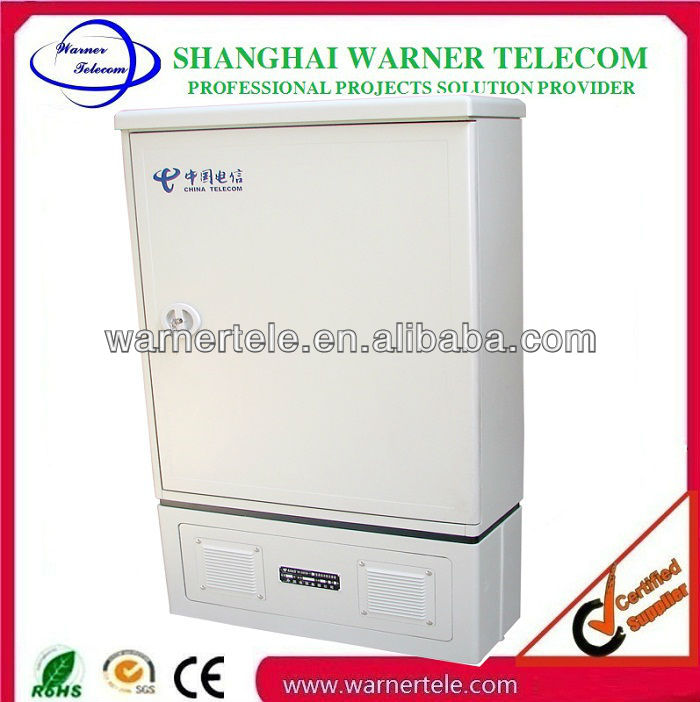

Stainless steel/SMC cabinet
3-point locking
24 cores to 192 cores
telecom comply  to IP 65







-----------------------------------

Description:



W-TEL CCA series large capacity cabinet has the functions of fiber distribution, splice, storage and dispatch. It has dogged performance of resisting the open -air environment and can resist severe climatic changes and serious working environment. The protection grade reaches IP65. The cabinet is made of SMC material / Stainless steel for your option . Meanwhile, it can be used in the XPON connection to install optical fiber splitter, to compose a integration system of connection, distribution and light source distribution. This matches the large capacity XPON connection greatly.We are working for all kinds of fiber optic cross connection cabinet :48cores,96cores,144core ,288 core ,576 core etc .













Product characteristics:



Made of SMC material or stainless steel, good heat insulation, seal belt inside the door make it work efficiently in different conditions..
Mould operation of cable fuse and distribution, easy maintenance
Direct fusion applicable
Apply of bundle, belt-shaped and non-belt-shaped optical cables
FC, SC, ST, LC adapter can be installed in it.
Reliable optical fiber protection, earthing etc.
The adapter is 30 °angle to the surface makes it easy to operate and protect the operator from the burning hurt.
Different fusion and wiring marks, easy operation and making notes.
Reasonable optical fiber cable panel to ensure the Dia of cable is more than 40mm in all directions.
Can install different types of optical fiber splitter to compose a compact cable distribution system



Features:



1.Excellent performance such as: water-proof,damp-proof,anti-erosion,anti-strike. Able to withstand abrupt climate change and extreme environment
2.Capacity can be flexibly customized as required
3.Installation is quick and convenient
4.Built-in direct splice unit is capable for providing direct connection function.
5.Perfect design of fiber wiring routing could facilitate management and maintenance of fibers
6.With secure and reliable fastening and grounding protection devices for the optic fiber
7.Applicable to strap-shaped and non-strap shaped fibers
8.Unique patent for the design of the door key,can never be easily broken.
9.With unique design of the adjust structure of temperature.



Main Technical Parameters:



(1)Operating temperature: between -40°C and +60°C (2)RH(relative humidity):95%(at temperature:+40°C) (3)Atmospheric pressure: between 70kpa and 106kpa (4)Isolation resistance: ≥2X10000M/500V(DC) (5)Anti-voltage strength: ≥3000V(DC)1min,no breakdown (6)Strong heat-proof performance,because the cabinet is made from high strength unsaturated polyester glass fiber reinforcement material called SMC (7)Static load-bearing capacity: 980N for the cover,980N for side surface,200N for door hinge (8)Sealing performance: YD/T988-199 (9)Using 12 core ODF panel integrated unit



Models introduction:



MODEL

SIZE

CAPACITY

ASSEBLING TYPE

REMARKS

W-CCA48

450×315×185

48cores

outdoor wall-mounted

suitable for adapters such as FC,SC,length of pigtail can be 2m single-end,patch cable can be optional:2m~3m

W-CCA96

960×525×325

96cores

outdoor floor type

W-CCA144

9600×525×325

144cores

outdoor floor type

W-CCA288

1450×750×325

288cores

outdoor floor type

W-CCA576

1450×750×620

576cores

outdoor floor type





Ready to go :









COMPANY DISPLAY :







Shanghai Warner Telecom is a global leader in the manufacture and supply of telecommunications equipment,network solution and energy saving system. As a science & technology innovative company, we are dealing with the R&D, manufacture, distribution and after-sales services of optical network communication equipment, optical fiber cable distribution products, telecom shelters and outdoor telecommunication cabinets with it's related power system ,control system ,cooling system ,battery system etc .Head of company located in shanghai ,3 branch factory :  FTTX factory located in hebei with an area of more than 8,000 square meters, power control factory located in shenzhen and thermal control factory in suzhou . Warner has a well-established team of experts who can meet customers' specific needs accurately.

We are an ISO9001:2000 certified manufacturer and exporter, our products widely used in Telecom, Netcom, mobiles, underground projects, highways, airports and railways. China Telecom, China Mobile, China Unicom and huawei / ZTE as main customer domestically. Our products are widely exported to dozens of countries and regions, such as Russia, India, France, the USA, Australia, Malaysia and Singapore,  used by SingTel, Turk Telecom, BSNL India, Viettel, Etisalat, Telestra, Mobily-Saudi Telecom,Rostelecom etc.

AS a telecom projects / network solution / energy saving system integrator in China, We have strong advantages in organizational competitiveness,teamwork competitiveness ,cultural competitiveness and innovation competitiveness.10 years professional rich experience in design,production and  implementation of different projects around this world we have gained great reputation .Depending on standard science management, strict quality control and perfect technical service, we will continuously offer state-of-the-art & cost-effective products and solutions to our esteemed customers globally. We believe we will move to a brighter future together with your firmly support .
