Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: W-TEL
  • Model Number: W-TEL-TM
  • FTTH optical fiber terminal cabinet: network degree
  • Mould number core: 24/48/96/144 core
  • outdoor use: IP65
  • material: PC/Steel
  • Certification: CE RoHS FCC
  • Application: FTTH FTTB FTTX Network

Packaging & Delivery

Packaging Details standard company plywood package
Upon customer's request
Delivery Time within 15 days

Shanghai Warner Telecom offer you fiber terminal box system :

optical fiber terminal cabinet
FTTH optic fiber terminal box
ISO9001:2000 CE&ROHS
ABS+PC material
Huawei design

FTTH 8/12/24 core optical fiber terminal box



Summary:
The terminal box is used to direct, terminal or branching connection of the fiber.

Features:
Optical termination box has the following features:
The splice of optical cable or fiber can be finished individually in the terminal box.
It may inlet and outlet not only from optical cable to optical cable but also form optical cable to pigtail.
The capacity of terminal box may vary from 12 to 96 Cores:
There is reliable optical cable fixing and ground protection device and sealing device.

Terminal box type 1

Features
• It is applicable for FTTH, FTTO and FTTD, etc.
• The clasp design of the cover has greatly reduced the installation strength. It is very thin and matches with other A86 panels in homes, and also meet the open or concealed cabling for optical cables.
• Coordinating with FC strip-type optical adapter, it generates more options in term of fiber interfaces for users, SC, LC and SC/FC are all available.
• The big-diametered wrapping post in the box protects radically in an omnibearing way.

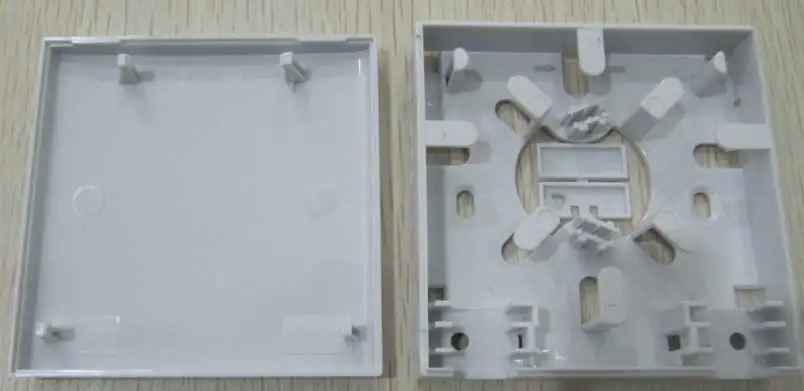

Terminal box type 2

This type optical fiber terminal box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH
Features
• This box could be used for wall-mounted and rack-mounted application;
• The base and cover of the box adopts ”self-clip” method, which is easy and convenient to open and close;
• Could be used for adaptors such as SC,FC,E2000;
• The max capacity is 4 fibers;
Specifications
• Environmental temperature:-25℃~ +40℃;
• Max Capacity:4 fibers;
• Suitable types of fiber cables: 4 fiber indoor fiber cables.





Terminal box type 3

Applications
• Widely used in FTTH Network.
• Telecommunication Networks
• CATV Networks
• Data communications Networks
• Local Area Networks
Features
• Standard user interface, be made of high impact plastic
• Easy operation and maintenance
• Can accommodate 1×8 or 1×4 PLC splitter
• Anti-UV, Ultra Violet resistant and rainfall resistant
• Wall and pole mountable.
• 2 inlet ports,8 outlet ports for ordinary cable or drop cable





Terminal box type 4

Technical characteristic:
Steel work of the resistance of the optical cable of the dielectric box of the completion and between the wick of the enhancement of the metal of the optical cable, the steel work of the optical cable, the steel work of the optical cable and the dielectric resistance of the place is greater than 2X104M (the test voltage is 500VDC) .

Furze electrical:
Between steel work of the box of the completion of the optical cable and the base of the enhancement of the metal of the cable and ground, 1min works under 15KV of the C.C voltage does not penetrate the excessive phenomenon of the not-arc.  radio of the optical cable, and the one of optical fiber to being greater than 45mn: • 20 the life on watch 20 years

Fiber Optic Cable Terminal Box :
Conditions of work: • ambient Temperature -25℃-+40℃ • Humidity relativa≤85% (+30℃) • Pressure atmospheric: 70~106Kpa





Terminal box type 5

Summary:
The optical fiber terminal box is used to connect small capacity optical cables and terminals; it has the function of it, splice and optical fiber connection.

Features:
Optical termination box has the following features:
19" Standard rack mount can be installed on any 19''rack and frames.
The capacity of terminal box may vary from 12 to 96 cores.
The largest capacity can up to 144 if use ribbon optical cable.
The splice of optical cable or fiber can be finished individually in the terminal box.
It may inlet and outlet not only from optical cable to optical cable but also form optical cable to pigtail.
The capacity of terminal box may vary from 12 to 48 cores.
There is reliable optical cable fixing and ground protection device and sealing device.

Technical characteristics:
Atmospheric pressure: 70 to 106kpa
Insulation resistance: >2 x 10m





Company information :

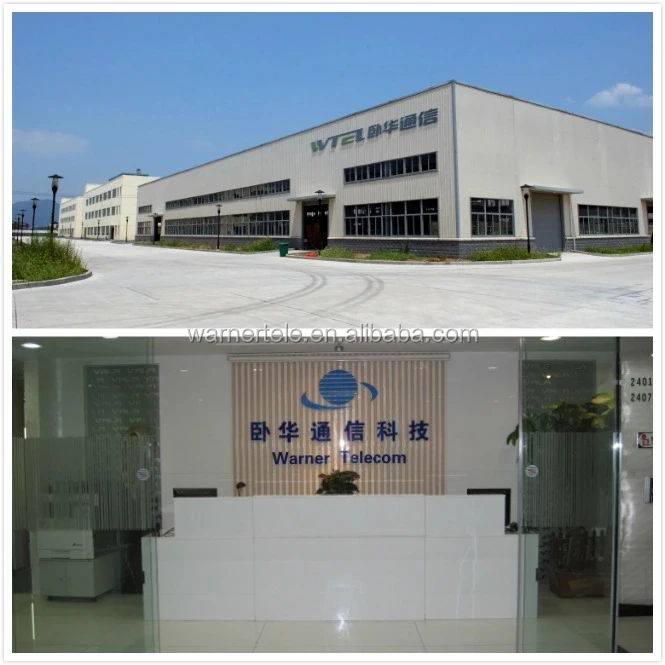

Shanghai Warner Telecom is a global leader in the manufacture and supply of telecommunications equipment,network solution and energy saving system. As a science & technology innovative company, we are dealing with the R&D, manufacture, distribution and after-sales services of optical network communication equipment, optical fiber cable distribution products, telecom shelters and outdoor telecommunication cabinets with it's related power system ,control system ,cooling system ,battery system etc .Head of company located in shanghai ,3 branch factory :  FTTX factory located in hebei with an area of more than 8,000 square meters, power control factory located in shenzhen and thermal control factory in suzhou . Warner has a well-established team of experts who can meet customers' specific needs accurately.

We are an ISO9001:2000 certified manufacturer and exporter, our products widely used in Telecom, Netcom, mobiles, underground projects, highways, airports and railways. China Telecom, China Mobile, China Unicom and huawei / ZTE as main customer domestically. Our products are widely exported to dozens of countries and regions, such as Russia, India, France, the USA, Australia, Malaysia and Singapore,  used by SingTel, Turk Telecom, BSNL India, Viettel, Etisalat, Telestra, Mobily-Saudi Telecom,Rostelecom etc.

AS a telecom projects / network solution / energy saving system integrator in China, We have strong advantages in organizational competitiveness,teamwork competitiveness ,cultural competitiveness and innovation competitiveness.10 years professional rich experience in design,production and  implementation of different projects around this world we have gained great reputation .Depending on standard science management, strict quality control and perfect technical service, we will continuously offer state-of-the-art & cost-effective products and solutions to our esteemed customers globally. We believe we will move to a brighter future together with your firmly support .
